YD27

Main cylinder nominal pressure: 1000kN - 10000kN

Multi-station sheet metal stretching servo hydraulic press

The multi-station sheet metal stretching servo hydraulic press is suitable for the stretching, forming, and trimming processes of sheet-like parts. Its core parameters revolve around servo drive performance, workstation configuration, and adaptability to stretching processes.

Strong-willed

Product Inquiry

Servo drive, precise and energy-saving

The servo motor can precisely control pressure, speed and displacement. The position accuracy can reach ±0.1mm, and the pressure accuracy is ±1% FS. Compared with traditional quantitative pump hydraulic presses, the energy-saving rate can reach 30% - 60%.

Multi-station continuous processing enhances production efficiency.

Work station transfer speed: 0.5 - 3 m/s, adjustable continuously. Combined with the rapid response of the servo drive, the single-shift production capacity is increased by 2 - 3 times compared to single-workstation equipment, meeting the requirements of large-scale production.

High degree of automation, easy to operate

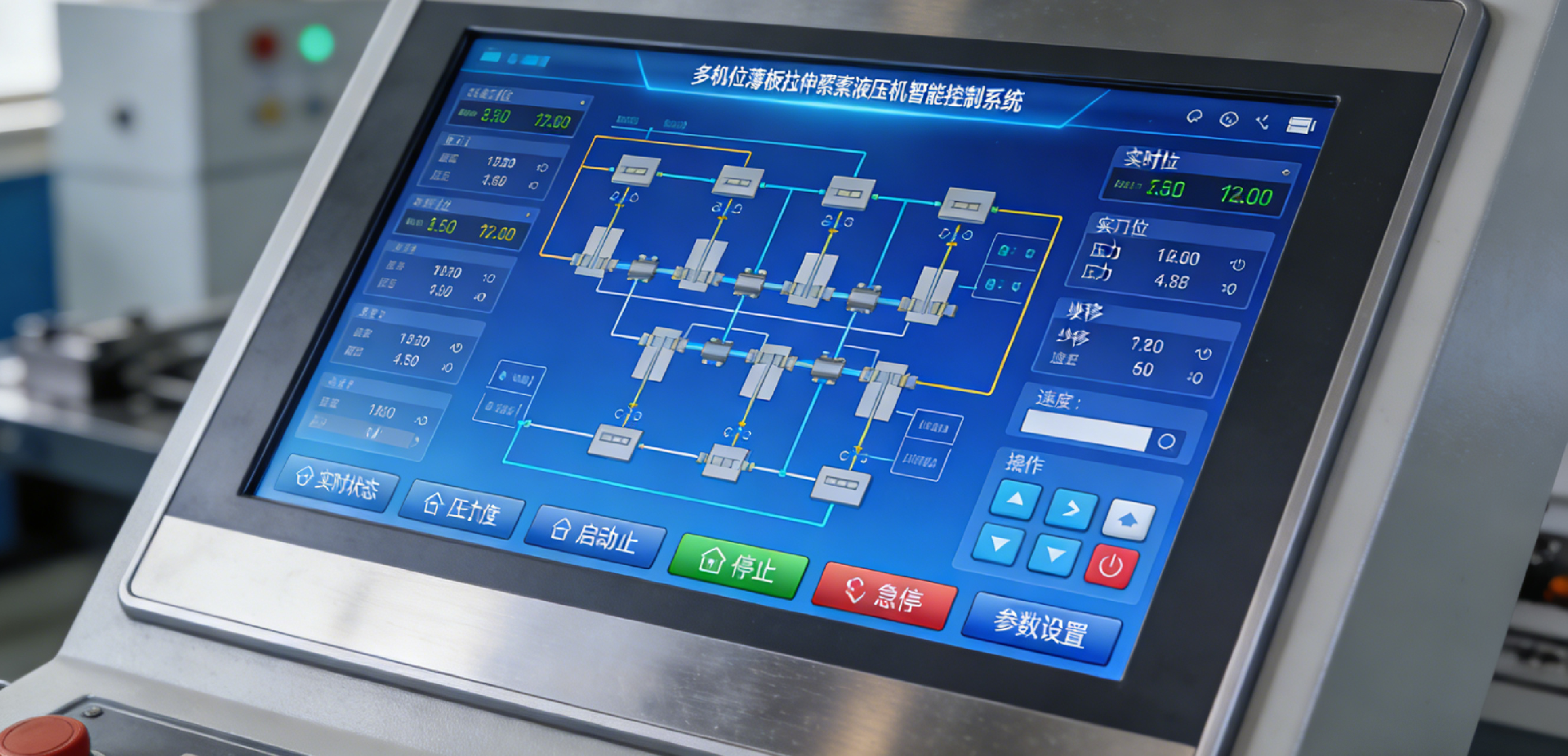

Intelligent control system: Utilizes PLC + touch screen for control, supporting functions such as process parameter storage, fault self-diagnosis, and production counting. The operation interface is intuitive.
